Persluchtdrogers

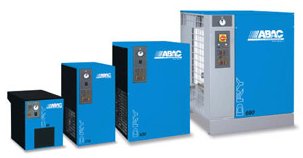

De ABAC DRY persluchtdrogers zijn te verkrijgen in de volgende varianten:
Capaciteiten: 2,2 kW - 3 kW - 4 kW - 5,5 kW - 7,5 kW - 11 kW
Druk varianten: DRY 20 t/m 130: 16 bar
DRY 165 t/m 1260: 13 bar
Voltages: DRY 20 t/m 530: 230/50/1
DRY 20 t/m 1260: 400/50/3
De keuze van een persluchtdroger is afhankelijk van Uw compressor
| ABAC Code | Model No. | Capaciteit | Voltage | Aansluiting | Dimensions | Weight | ||
| cu m/min | V/Hz/Ph | gas/DN | L | W | H | Kg | ||
| 4102000740 | DRY 20 | 0.33 | 230/50/1 | 3/4"M | 350 | 500 | 450 | 19 |
| 4102000741 | DRY 25 | 0.42 | 230/50/1 | 3/4"M | 350 | 500 | 450 | 19 |
| 4102000742 | DRY 45 | 0.75 | 230/50/1 | 3/4"M | 350 | 500 | 450 | 19 |
| 4102000743 | DRY 60 | 1.00 | 230/50/1 | 3/4"M | 350 | 500 | 450 | 20 |
| 4102000744 | DRY 85 | 1.42 | 230/50/1 | 3/4"M | 350 | 500 | 450 | 25 |
| 4102000745 | DRY 130 | 2.20 | 230/50/1 | 3/4"M | 350 | 500 | 450 | 27 |
| 4102000746 | DRY 165 | 2.80 | 230/50/1 | 1"F | 370 | 500 | 764 | 44 |
| 4102000747 | DRY 210 | 3.50 | 230/50/1 | 1"F | 370 | 500 | 764 | 44 |
| 4102000748 | DRY 250 | 4.20 | 230/50/1 | 1 1/2"F | 460 | 560 | 789 | 53 |
| 4102000749 | DRY 290 | 4.80 | 230/50/1 | 1 1/2"F | 460 | 560 | 789 | 60 |
| 4102000750 | DRY 360 | 6.00 | 230/50/1 | 1 1/2"F | 460 | 560 | 789 | 65 |
| 4102000751 | DRY 460 | 7.67 | 230/50/1 | 1 1/2" F | 580 | 590 | 899 | 80 |
| 4102000752 | DRY 530 | 8.83 | 230/50/1 | 1 1/2"F | 580 | 590 | 899 | 80 |
| 4102001584 | DRY 690 | 11.50 | 400/50/3 | 2"F | 735 | 898 | 962 | 128 |
| 4102001585 | DRY 830 | 13.83 | 400/50/3 | 2"F | 735 | 898 | 962 | 146 |
| 4102001586 | DRY 1040 | 17.33 | 400/50/3 | 2"F | 735 | 898 | 962 | 158 |
| 4102001587 | DRY 1260 | 21.00 | 400/50/3 | 2"F | 735 | 898 | 962 | 165 |
!
